Name: 25mm VIS 0° Coated, BBAR Coated Right Angle Prism
Brand: TECHSPEC
SKU: 84-510
Price: ₹10,625.00

25mm VIS 0° Coated, BBAR Coated Right Angle Prism

Stock #84-510

- +

₹10,625.00

Qty 1-5
₹10,625.00

Qty 6+
₹8,500.00

Volume Pricing
Request Quote

+ Add to Saved List

Compare

Get Product Downloads

Angle Tolerance (arcsec):

±15

Coating:

VIS 0° (425-675nm)

N-BK7

Surface Quality:

40-20

Type:

Right Angle Prism

Dimensional Tolerance (mm):

+0.00/-0.10

Bevel:

Protective bevel as needed

Clear Aperture (%):

Length of Hypotenuse (mm):

35.40

Length of Legs (mm):

25.00

Typical Energy Density Limit:

Entrance/Exit Faces: 5 J/cm² @ 532nm, 10ns

Image Orientation:

Left-Handed

Note:

Coating on Entrance/Exit Faces

Coating Specification:

R_avg ≤0.4% @ 425 - 675nm

Ray Deviation (°):

Wavelength Range (nm):

425 - 675

Surface Flatness (P-V):

λ/8

Entrance/Exit Faces: 5 J/cm² @ 532nm, 10ns

Regulatory Compliance

RoHS:

Compliant

Certificate of Conformance:

View

Product Family Description

Ideal for Low Power Laser Sources
Multiple BBAR Coatings Available
Ray Deviation of 90°

Featuring tight angle tolerances and a precision N-BK7 substrate, TECHSPEC® Broadband Anti-Reflection (BBAR) Coated Right Angle Prisms are ideal for a range of low power laser line applications. The BBAR coating improves transmission efficiency when compared to uncoated right angle prisms.

Right angle prisms are generally used to bend image paths or redirect light at 90°. This produces a left handed image and depending on the orientation of the prism, the image may be inverted or reverted. Right angle prisms can also be used in combination for image/beam displacement.

25mm VIS 0° Coated, BBAR Coated Right Angle Prism

Regulatory Compliance

Product Family Description

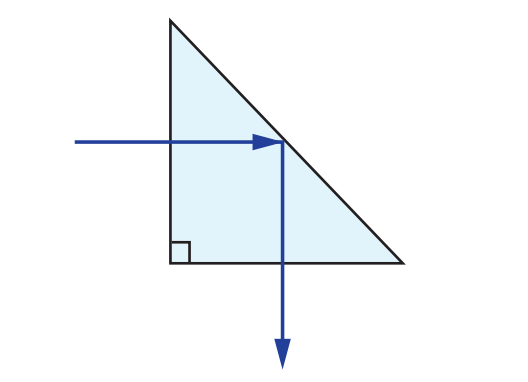

Right Angle Prism Ray Path
