Contact Reticles
Contact Reticles are used to provide measurement capabilities to a number of different magnifiers by adding fixed measurement guides that are visible against an examined subject. Contact Reticles are attached to a magnifier's lens, adding a fixed measurement tool to the magnifier. Contact Reticles are available in a number of different formats designed for various kinds of measurement including crosshair, linear, circular, or multi scale.

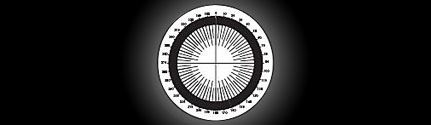

Circular Scale Contact Reticles
- Greater Stability than Film Reticles
- Low Reflection Chrome Pattern
- Protractor, Crosshair, or Concentric Square Patterns
Crosshair Scale Contact Reticles
- Greater Stability than Film Reticles
- Low Reflection Chrome Pattern
- Plain or Dashed Crosshairs
Index Square Contact Reticles
- Greater Stability than Film Reticles
- Low Reflection Chrome Pattern
- English or Metric Index Square Scales
Linear Scale Contact Reticles
- Greater Stabiliy than Film Reticles
- Low Reflection Chrome Pattern
- English and Metric Styles
Multi Scale Contact Reticles
- Greater Stability than Film Reticles
- Low Reflection Chrome Pattern
- English or Metric Styles
Thickness and Hole Gauge Scale Contact Reticles
- Greater Stability than Film Reticles
- Low Reflection Chrome Pattern
- Compatible with 6 or 9X Comparators
