Name: C-Mount Achromat Pair 1:2 with 50 and 100mm Focal Lengths
Brand: TECHSPEC
SKU: 87-189
Price: ₹32,190.00

Surface Quality:

40-20

Working f/#:

f/5.0 - f/125

Coating:

VIS 0° (425-675nm)

Coating Specification:

R_avg ≤0.4% @ 425 - 675nm

Aperture (mm):

0.8 - 20

Effective Focal Length EFL A (mm):

50.0

Effective Focal Length EFL B (mm):

100.0

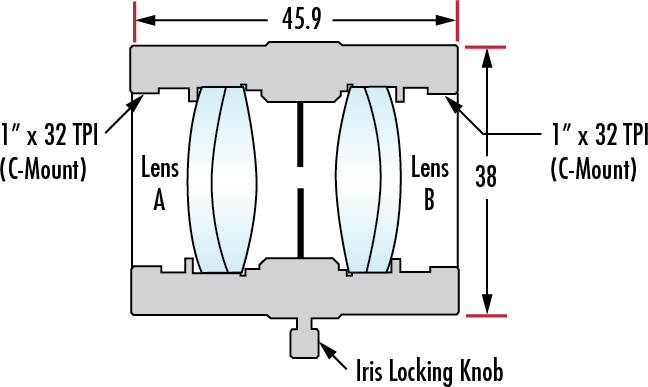

Housing Diameter (mm):

38.00

Housing Length (mm):

45.9

Magnification:

1:2

Object Distance (mm):

35.00

Image Distance (mm):

85.00

Type:

Relay Lens

Wavelength Range (nm):

425 - 675

Regulatory Compliance

RoHS:

Compliant

Certificate of Conformance:

View

Product Family Description

C-Mount Designs for Easy Integration into Imaging Applications
Feature Integrated Iris for Increased Control of Light Throughput
Ideal for Relay or Projection Applications

TECHSPEC® C-Mount Achromatic Pairs are designed to be easily integrated into a variety of OEM applications. TECHSPEC C-Mount Achromatic Pairs utilize an integrated iris to allow for user adjustment of numerical aperture and depth of focus. Each lens has been oriented for maximum system performance. The aluminum housing removes the risks associated with handling loose optics. Broadband visible coated lenses provide high transmission and low reflection loss over wide spectral regions.
