Name: 50.0mm 400 - 750nm Coated, N-BK7 Right Angle Mirror
Brand: TECHSPEC
SKU: 87-395
Price: ₹29,750.00

50.0mm 400 - 750nm Coated, N-BK7 Right Angle Mirror

Broadband Dielectric Coated Right Angle Mirrors

Stock #87-395

- +

₹29,750.00

Qty 1-5
₹29,750.00

Qty 6+
₹23,800.00

Volume Pricing
Request Quote

+ Add to Saved List

Compare

Get Product Downloads

Coating:

Dielectric Mirror (400-750nm)

Coating Specification:

Hypotenuse: R_avg >98% @ 400 - 750nm

Wavelength Range (nm):

400 - 750

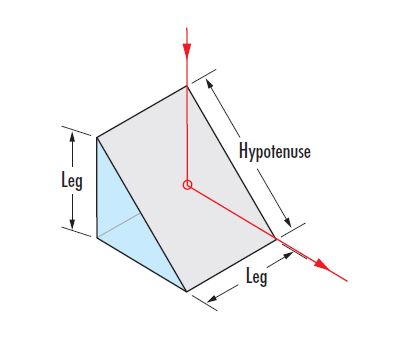

Length of Legs (mm):

50.00

Length of Hypotenuse (mm):

70.70

Surface Flatness (P-V):

λ/4

N-BK7

Surface Quality:

40-20

Dimensional Tolerance (mm):

±0.1

Coating Type:

Dielectric

Angle Tolerance (arcmin):

±2

Clear Aperture (%):

Type:

Right Angle Mirror

Regulatory Compliance

RoHS 2015:

Compliant

Reach 209:

Compliant

Certificate of Conformance:

View

Product Family Description

Greater Than 98% Reflection Over Broad Wavelength Ranges
High Reflectivity for all Polarization States
Reflect Light at 90°
Standard Metal Coated Right Angle Mirrors Also Availble

TECHSPEC® Broadband Dielectric Coated Right Angle Mirrors are designed for beam steering or precision alignment applications utilizing multiple laser sources or operating from the visible to near-infrared spectra. TECHSPEC Broadband Dielectric Coated Right Angle Mirrors feature improved reflection compared to standard metal coated mirrors, increasing system performance by decreasing energy loss. These right angle mirrors are easily mounted and integrated into optical systems.
