3mm Diameter x -9 FL, NIR I Coated, Plano-Concave Lens

Diameter (mm):

3.00 +0.0/-0.025

Effective Focal Length EFL (mm):

-9.00

N-SF11

f/#:

3.00

Numerical Aperture NA:

0.17

Coating:

NIR I (600-1050nm)

Type:

Plano-Concave Lens

Wavelength Range (nm):

600 - 1050

Back Focal Length BFL (mm):

-9.56

Bevel:

Protective bevel as needed

Center Thickness CT (mm):

1.00

Center Thickness Tolerance (mm):

±0.05

Centering (arcmin):

Clear Aperture CA (mm):

2.7

Coating Specification:

R_avg ≤0.5% @ 600 - 1050nm

Edge Thickness ET (mm):

1.11

Focal Length Specification Wavelength (nm):

587.6

Focal Length Tolerance (%):

±1

Radius R₁ (mm):

-7.06

Surface Quality:

20-10

Typical Energy Density Limit:

7 J/cm² @ 1064nm, 10ns

Power (P-V) @ 632.8nm:

1.5λ

Irregularity (P-V) @ 632.8nm:

λ/4

Regulatory Compliance

RoHS 2015:

Compliant

Reach 224:

Compliant

Certificate of Conformance:

View

Product Family Description

AR Coated to Provide <0.5% Reflectance per Surface for 600 - 1050nm
Designed for 0° Angle of Incidence
Various Coating Options: Uncoated, MgF₂, VIS 0°, VIS-NIR, YAG-BBAR, and NIR II

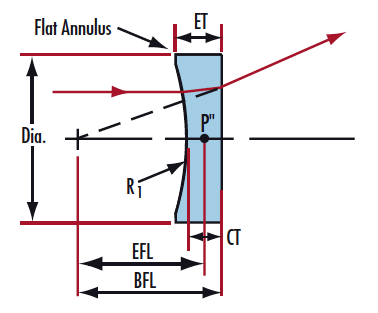

Plano-Concave (PCV) lenses have one flat and one inward curved surface. PCV lenses have a negative focal length and are used for image reduction or to spread light.
