Name: 35mm Dia Silver, 4-6λ Mirror
Brand: TECHSPEC
SKU: 89-488
Price: ₹2,933.00

35mm Dia Silver, 4-6λ Mirror

Stock #89-488

- +

₹2,933.00

Qty 1-5
₹2,933.00

Qty 6+
₹2,253.00

Volume Pricing
Request Quote

+ Add to Saved List

Compare

Get Product Downloads

Diameter (mm):

35.00 ±0.25

Surface Flatness (P-V):

4 - 6λ

Float Glass

Surface Quality:

60-40

Dimensional Tolerance (mm):

±0.25

Coating Specification:

R_avg >98% @ 450 - 2000nm
R_avg >98% @ 2000 - 10,000nm

Coating:

Protected Silver (450-10000nm)

Coating Type:

Metal

Clear Aperture CA (mm):

33.25

Edges:

Ground, 0.5mm Maximum Edge Chip

Thickness (mm):

3.00 nominal

Type:

Flat Mirror

Typical Energy Density Limit:

0.5 J/cm² @ 532nm & 1064nm, 10ns

Wavelength Range (nm):

450 - 10000

0.5 J/cm² @ 532nm & 1064nm, 10ns

Regulatory Compliance

RoHS 2015:

Compliant

Reach 224:

Compliant

Certificate of Conformance:

View

Product Family Description

Wide Variety of Shapes and Sizes Available
Enhanced Aluminum, Protected Gold, and Protected Silver Coatings
Contact Us for Custom Sizes

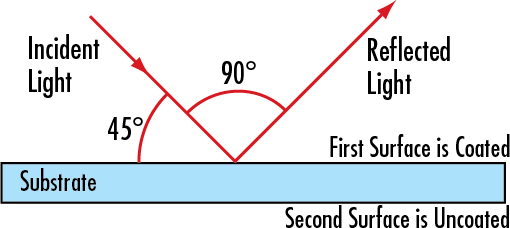

When using our TECHSPEC® First Surface Mirrors, the coated surface is to be facing the incident light in order to minimize energy loss by not allowing light to pass through the glass substrate. The mirrors are available in circular, square, and rectangular dimensions. Rectangular first surface mirrors are ideal for applications requiring the mirror to be mounted at 45° in order to produce a 90° bend in the light path.
