Name: 35mm Dia. 400 - 750nm Broadband λ/10 Mirror
Brand: TECHSPEC
SKU: 87-373
Price: ₹12,325.00

Coating:

Dielectric Mirror (400-750nm)

Coating Specification:

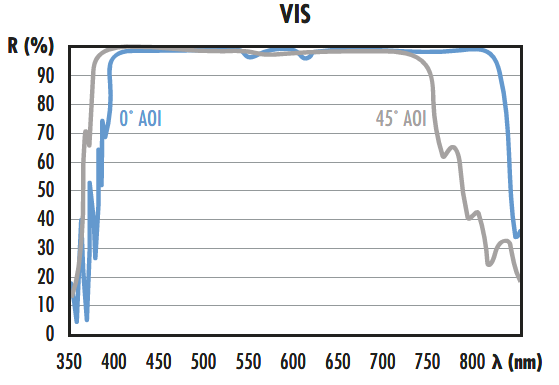

R_avg >98% @ 400 - 750nm (0 - 45°)
R_avg >99% @ 400 - 750nm (0°)

Wavelength Range (nm):

400 - 750

Diameter (mm):

35.00 +0.00/-0.20

Surface Flatness (P-V):

λ/10

Fused Silica (Corning 7980)

Back Surface:

Commercial Polish

Surface Quality:

20-10

Coating Type:

Dielectric

Angle of Incidence (°):

0-45

Clear Aperture (%):

Damage Threshold, Pulsed:

0.5 J/cm² @ 532nm, 20ns, 20Hz

Edges:

Ground, 0.5mm max bevel

Parallelism (arcmin):

<0.5

Thickness (mm):

5.00 ±0.20

Type:

Flat Mirror

0.5 J/cm² @ 532nm, 20ns, 20Hz

Regulatory Compliance

RoHS 2015:

Compliant

Reach 209:

Compliant

Certificate of Conformance:

View

Product Family Description

Enhanced Reflectivity and LIDT over Metallic Coatings
Average Reflectivity >99% Over Broad UV, Visible, and NIR Wavelengths
Designed for all Polarization States from 0 – 45° AOI

TECHSPEC® Broadband Dielectric λ/10 Mirrors are ideal for beam steering or reflection applications utilizing multiple laser sources. These dielectrically optical mirrors feature greater than 99% reflection, significantly better than that of metal coated mirrors, and increases system performance by minimizing energy loss. The highly durable fused silica substrate offers a low coefficient of thermal expansion and a high resistance to abrasion. TECHSPEC Broadband Dielectric λ/10 Mirrors are designed for applications from the UV to the near-infrared spectra.
