Name: 12.7mm Clear Aperture 50R/50T, Pellicle Beamsplitter
SKU: 19-310
Price: ₹17,510.00

12.7mm Clear Aperture 50R/50T, Pellicle Beamsplitter

Pellicle Beamsplitters

Stock #19-310

- +

₹17,510.00

Qty 1-10
₹17,510.00

Qty 11+
₹13,430.00

Volume Pricing
Request Quote

+ Add to Saved List

Compare

Get Product Downloads

Clear Aperture CA (mm):

12.7

Coating:

Dielectric

Coating Specification:

50/50 @ 632.8nm

Construction:

Pellicle

Design Wavelength DWL (nm):

632.8

Diameter (mm):

19.05

Housing:

Black Anodized Aluminum

Index of Refraction n_d:

1.5

Mount Thickness (mm):

3.18

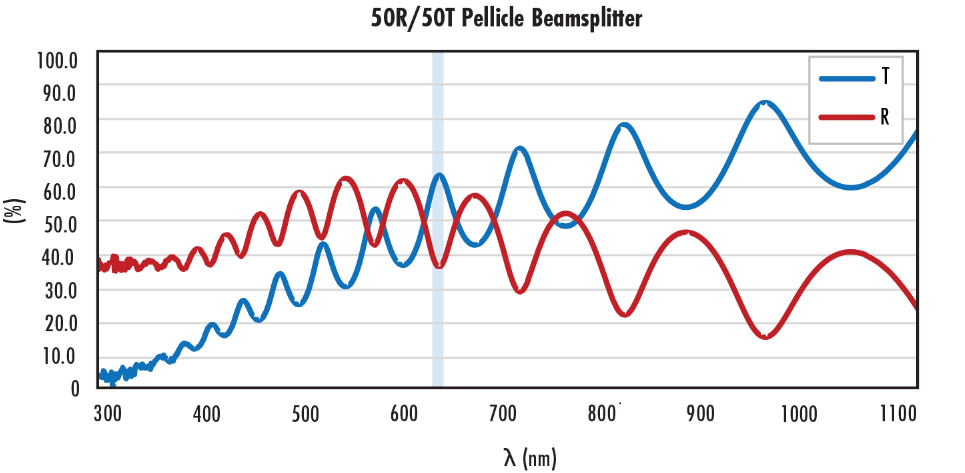

Reflection/Transmission Ratio (R/T):

50/50 ±3%

Nitrocellulose

Surface Quality:

40-20

Type:

Pellicle Beamsplitter

Mounting Threads:

2-56

Thickness (μm):

2 +0.3/-0.0

Regulatory Compliance

RoHS:

Compliant

Certificate of Conformance:

View

Product Family Description

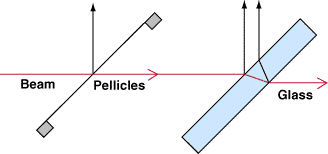

No Ghost Images from Second Surface Reflections
No Chromatic Aberration with Converging Beams
No Change in Optical Path Length

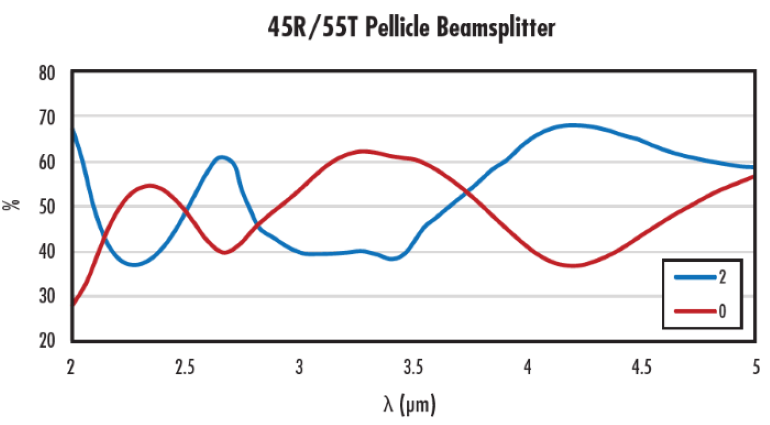

Pellicle Beamsplitters for the Infrared (IR) Also Available

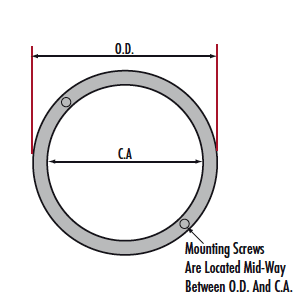

Pellicle Beamsplitters are very thin nitrocellulose membranes bonded to lapped aluminum frames that feature no ghost images from second surface reflections. To ease system integration, Pellicle Beamsplitters offer mounting holes on the underside of the frame. Pellicle Beamsplitters are resistant to mechanical shock or climate variations, but must be protected from dust and spray to avoid damage to the pellicle membrane.

Note: Extra care must be taken when handling.
