Name: 50mm Dia x 50mm FL 3-5μm Coated, Ge Aspheric Lens
Brand: TECHSPEC
SKU: 87-996
Price: ₹1,28,350.00

50mm Dia x 50mm FL 3-5μm Coated, Ge Aspheric Lens

Diameter (mm):

50.00 +0.0/-0.1

Effective Focal Length EFL (mm):

50.00 @ 4000nm

Numerical Aperture NA:

0.50

Back Focal Length BFL (mm):

45.92

Germanium (Ge)

Aspheric Design Wavelength (nm):

4000

Coating:

BBAR (3000-5000nm)

Coating Specification:

R_avg <3.0% @ 3 - 5μm

Centering (arcmin):

≤5

Surface Quality:

60-40

Clear Aperture CA (mm):

Edge Thickness ET (mm):

2.52

Center Thickness CT (mm):

5.10 ±0.10

f/#:

1.00

Bevel:

Protective bevel as needed

Edges:

Diamond Turned

Radius R₂ (mm):

62.38

Shape of Back Surface:

Concave

Wavelength Range (nm):

3000 - 5000

Conjugate Distance:

Infinite

Asphere Figure Error, RMS @ 632.8nm:

λ/6

Regulatory Compliance

RoHS 2015:

Compliant

Certificate of Conformance:

View

Reach 233:

Compliant

Product Family Description

Diffraction Limited Performance
Variety of Coating Options
Full Prescription Data Available

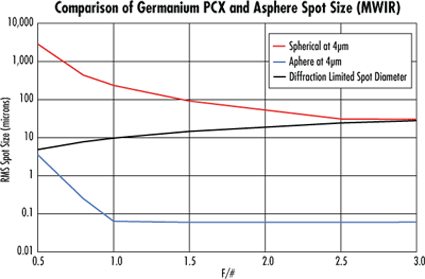

Our TECHSPEC® Germanium Infrared (IR) Aspheric Lenses provide diffraction limited focusing performance over a broad spectral range in the Mid- and Long Wave infrared regions. Ideal for monochromatic light sources, such as quantum cascade lasers, these lenses offer a high performance alternative to standard plano-convex lenses.

Each aspheric lens is available uncoated, or with BBAR coating options. Uncoated germanium has transmission of <50%, so custom anti-reflection (AR) coatings should be considered if specifying an uncoated lens. Each BBAR coated lens offers >95% transmission, making it ideal for integration into a variety of OEM applications. For custom design or coating options, please contact our Sales Department.
